Description
Prefabricated Living Modular 20ft Movable Customized Prefab Container House
| Name | Prefabricated Living Modular 20ft Movable Customized Prefab Container House | |||
| Size | Standard Size: 6055*2990*2896mm Export Size: 5800*2400*2896mm | |||
| Performance index | Heat insulation | λ=0.048W/m.K | Windproof | 0.60kN/sqm |
| Sound insulation | Sound insulation loss≥30dB | Fireproof | Grade A | |
| Waterproof | Sound insulation 360 degrees bite, organized drainage, precipitation 16mm/ min, no leakage. | Quakeproof | Grade 9 | |
| Ground bearing capacity | 2.0kN/sqm | Floor live load | 1.1kN/sqm | |
| Structure | Structural section | Ground girder: 160mm, galvanized beam 3.0mm thick; Ground secondary beam: specification 100*50*1.8mm, 9pcs galvanized square tubes; Column: 210*150 mm, galvanized beam 3.0 mm thick; Roof main beam: 180mm, galvanized beam 3.0mm thick; Roof secondary beam: 80*40*1.5mm thick, 7pcs galvanized square pipes; |
||
| Structural connection | M12*30 high strength bolt | |||
| surface treatment | Electrostatic spraying plastic powder baking paint≥80μm | |||
| Wallboard | Rock wool board | The color steel composite board is 75mm in thickness, 1150mm in width, 0.426mm in thickness, attached with PE film, white gray in color, and free of embossing on double-sided flat plate; the bulk density of rock wool is 80kg/ M~3, and the combustion performance is A-class non combustible. | ||
| Roofing | Roof panel | Roof tile: color steel veneer bite thickness 0.426 mm, 360 ° bite | ||
| Insulation layer | It has a thickness of 50 mm, a bulk density of 14 kg / M~3, and a class of incombustible | |||
| Ceiling | 831 strip ceiling board, 0.4mm | |||
| Floor | Structural plate | Cement fiberboard, thickness 18mm | ||
| Floors | PVC floor leather, 2.0 mm thick, seamless | |||
| Door | Entrance doors | Steel suit door, size>w840mm × h2040mm, fireproof door lock | ||
| Window | External window | UPVC series plastic steel sliding window, size: w1125mm x H1100 mm x 2 μm; 5 + 9 + 5 insulating glass with anti-theft net and screen window | ||
| Decorate | Interior decoration | The inner corner is 0.5mm color steel folding piece, the column edge is 0.5mm color steel folding piece, and the skirting line is PVC | ||
| Electrical | Light | LED strip lamp x 2 sets, 15W/ set | ||
| Socket | 10A five hole socket x 3 or 36V low voltage 4-hole USB panel x 3, 16a air conditioning socket x 1 | |||
| Switch | Single key switch x 1 | |||
| Power Distribution Box | Concealed distribution box x 1 | |||
| CEE industrial plug | 220V,50Hz,3P32A x 1, | |||
| Cable line | Household line: 3*6 square meters, air conditioning socket: 3*4 square meters, five hole sockets: 3*2.5 square meters, lighting: 2*1.5 square meters | |||
Application: Residence/office/shop/dormitory/temporary school, first aid, hospital…
Notice: Before assemble the container house, the ground must be with solid foundation, to make sure the container house is on the flat, solid and far away from chemical corrosion.
Click here to see more product
Or send your inquiry details in the below, Click “Send” Now !

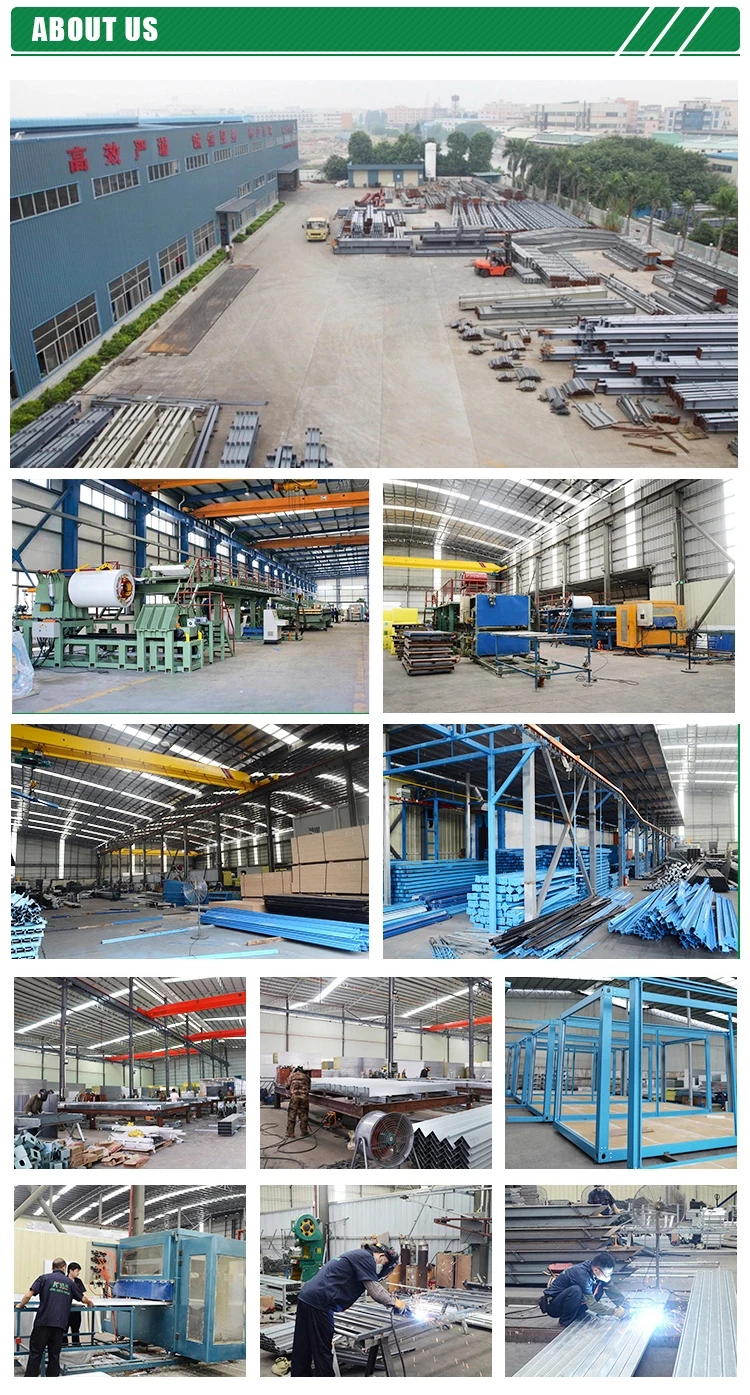

Guangzhou Kinghouse Modular House Technology Co., Ltd. is located in Guangzhou, integrating design, production, sale and installation. We are mainly engaged in movable house, steel structure plant, light steel combination room, light steel villa, portable container house, non-standard shaped movable house, steel structure shed, fence, steel and auxiliary material.
With advanced technology and facilities, Scientific management and rich experienced engineer, we have been recognized as a reliable supplier for many domestic and international buyers. Our products sell well in Africa, Southeast and South America.
With advanced automatic production equipment, first-class processing technology and innovate technology, rich experience in production and installation, complete equipment, high-quality technical workers.
We can meet the different needs of customers at the same time, build the right prefab house for you!
1. Supply ability: 250,000 sqm of prefab houses, 10,000 units of flat pack container and 3,000 modular house with interior&exterior decoration.
2. Loading ability- 40HQ: 15units ( SKD)
3.Payment terms:
1) T/T 30% as deposit and 70% before loading the container
2) Trade assurance (Recommended)
3) Irrevocable L/C at sight
4) West Union/Money gram/Paypal
5) Trade terms: could be negotiated.
4. Lead time: 10-15 days after the receipt of deposit
5. Paid sample is welcome.
